Allen & Heath dLive DX32

Allen & Heath dLive DX32
nº de producto: 9000-0065-5611 Garantía Bax Music: El periodo de garantía de este producto es de 2 años.

General

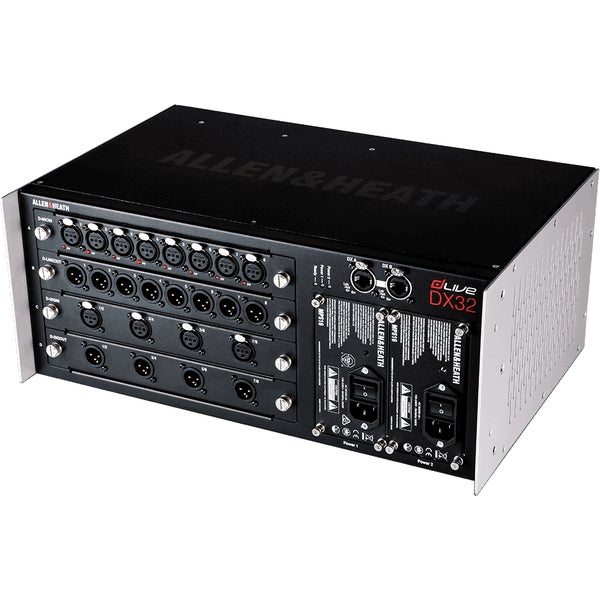

The Allen & Heath dLive DX32 Audio Expander has a modular design set up to support digital or analogue dLive systems. This unit is able to add 4x 8 channels and various modules are available for the purpose. Two DX32s can be connected to a dLive MixRack and an extra DX32 can be connected to the Surface. When working with SQ systems, up to four can be connected via a DX hub and, when working with an Atlantis system, up to eight can be connected via a DX hub and/or a DX Link card. The DX32 also features two power ports that can be 'hot' switched and comes in a neat housing that can be mounted into a 19 inch rack using the included mount.

Características

Características del producto

Sustainable product	not specified
Canales entrada	121 - 150
Canales analógicos	57 - 64
Formato rack 19	no

Peso y las dimensiones incluyen el paquete

Peso (incluyendo el paquete)	15,0 kg
Dimensiones (incluyendo el paquete)	60,0 x 40,0 x 30,0 cm

Características del producto

Allen & Heath dLive DM32
modules:
- 8 preamps with XLR connections
- 8 line level, balanced XLR-outputs with SRC (32kHz-192k sampling rate)
- 4x stereo AES inputs
- 4x stereo AES outputs via XLR (44.1kHz, 48 kHz or 96 kHz switchable)
inputs:
- mic/line XLR inputs balanced XLR, +48V phantom power
- independent mic/ line Preamps
- sensitivity: -60 to +15 dBu
- analogue gain: +5 to +60dB, 1dB steps
- pad: -20dB active
- max. Input Level +30dBu (PAD in)
- impedance: >4kΩ (Pad out), >10kΩ (Pad in)
- Mic EIN -127dB with 150 Ohm source
- phantom power indicator
digital inputs
- AES3 2 Ch XLR, 2.5Vpp balanced
- terminated 110 Ohm
- SRC per pair, range 32k -192kHz, with bypass option
system:
- ADC: 24-bit Delta-Sigma
- DAC: 24-bit Delta-Sigma
- latency: + 8 samples, DX32 to Mixrack or DX32 to Surface (DX hop)
- system latency: 0.7ms MixRack XLR in to XLR out, input to Mix
- operating temperature: -0°C to 35°C
- power supply: 100-240V AC, 47-63Hz, 300W max.
outputs
- analogue XLR outputs. balanced, relay protected
- output impedance: <75 Ohm
- nominal output: +4dBu = 0dB meter reading
- maximum output level: +22 dBu
- residual output noise: -92dBu (muted, 20-20kHz), -90dBu (muted, 20-40kHz)
- digital outputs: AES3 2 Ch XLR, 2.5Vpp balanced. terminated 110 Ohm
- 96kHz sampling rate, can be set to 48kHz and 44.1kHz
dimensions: 433 x 290 x 177mm
weight: 10.5 kg
