Midas DL251 panel de conexiones con 48 entradas y 16 salidas AES50
nº de producto: 9000-0015-2575 Garantía Bax Music: El periodo de garantía de este producto es de 10 años.

General

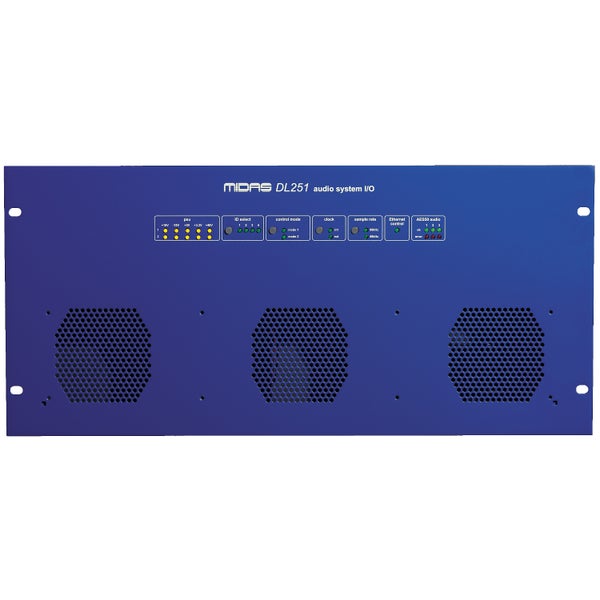

The Midas DL251 is a 19-inch 5U digital I/O box with 48 analogue inputs equipped with legendary Midas preamps, 8 outputs and 2 AES50 transfer ports. You can connect up to 48 analogue audio sources to this stage box and send that signal through to a digital mixer via Ethernet. This device is fitted with three AES50 connectors, each of which has 24 sends and 24 returns. For all this, you only need a total of three cables! The DL251 has a remote Ethernet connection located on the rear so you can utilise its outstanding mic preamps at a distance via a digital mixing console or computer. Should this DL251 digital snake be used together with the DL252 (a mirrored version with 48 outputs and 16 inputs), the whole thing can function as a stand-alone snake to bridge a gap of up to 100 metres with a couple of CAT5 cables.

Características

Características del producto

Formato rack 19	sí, 5 U
Canales entrada	41 - 48
Canales analógicos	9 - 16

Peso y las dimensiones incluyen el paquete

Peso (incluyendo el paquete)	19,0 kg
Dimensiones (incluyendo el paquete)	61,0 x 54,0 x 37,0 cm

Características del producto

digital snake (stage box)
19 inch: 5U
inputs: 48 XLR mic/line
outputs: 16 XLR mic/line
3x AES50 connectors
MIDI in, out and thru
sample rates: switchable between 96 Hz and 48 kHz
latency delay: <1 ms (direct connection between input and output)
dynamic range: 107 dB, 22 Hz to 22 kHz
maximum gain: 45 dB
crosstalk @ 1 kHz: -100 dB (physically adjacent input channels)
crosstalk @ 10 kHz: -90 dB (physically adjacent input channels)
all connectors made by Neutrik
double power connectors
on/off switch on the rear
diagnosis connector: 9-watt female D-type (for use only by Midas service personnel)
boot mode: switches between normal use and service mode (for use only by Midas service personnel)
power supply: 100-240V, AC~50-60Hz
dimensions: 222.5 (5U) x 482.6 x 410 mm
weight: 10 kg
