Midas DL155 panel de conexiones con 8 entradas y 8 salidas AES50

No disponible, este producto ya no puede adquirirse.

No se han encontrado alternativas

Información del producto
Opiniones (1)
Descargas (2)

Midas DL155 panel de conexiones con 8 entradas y 8 salidas AES50
nº de producto: 9000-0015-2658 Garantía Bax Music: El periodo de garantía de este producto es de 10 años.

General

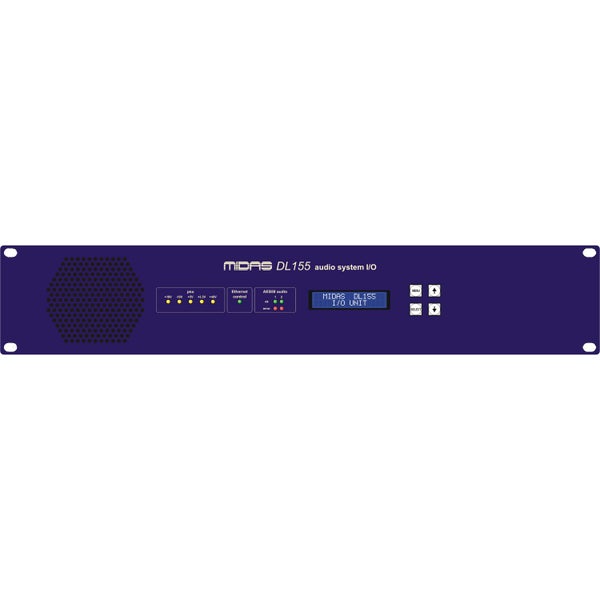

The Midas DL155 is a digital I/O box, 19 inch-rack 2U snake with 8 analogue inputs and outputs and legendary Midas preamps and is an expansion on the analogue inputs and outputs on a PRO1 or PRO2 mixer. There are 8 AES/EBU digital inputs and outputs and two AES50 ports. Use the Ethernet connections on the rear to control the preamps from a distance with your digital mixer or computer. The LCD display on the front shows you relevant information and, since this I/O box is 2U high and can be mounted in a 19-inch rack, making it ideal for mobile recording.

Características

Características del producto

Formato rack 19	sí, 2 U
Canales entrada	8
Canales analógicos	8

Peso y las dimensiones incluyen el paquete

Peso (incluyendo el paquete)	6,0 kg
Dimensiones (incluyendo el paquete)	58,0 x 50,0 x 22,0 cm

Características del producto

digital snake (stage box)
19-inch: 2U
inputs: 8 XLR mic/line
outputs: 8 XLR mic/line
8x AES3 (AES/EBU) digital I/O
remote control (up to 100m) via Ethernet connection
2x AES50 connectors
MIDI I/O/THRU
sample rates: 96 kHz, 24-bit
all connectors made by Neutrik
on/off switch on the rear
diagnosis connector: 9W female D-type (for use only by Midas service personnel)
boot mode: switches between normal use and service mode (for use only by Midas service personnel)
power supply: 100-240V, AC~50-60Hz
dimensions: 88.1 x 482.6 x 380 mm
weight: 5 kg
