Tascam BD-MP1 Blu-Ray en mediaspeler

Tascam BD-MP1 Blu-Ray en mediaspeler
nº de producto: 9000-0056-6962

Información del producto

General

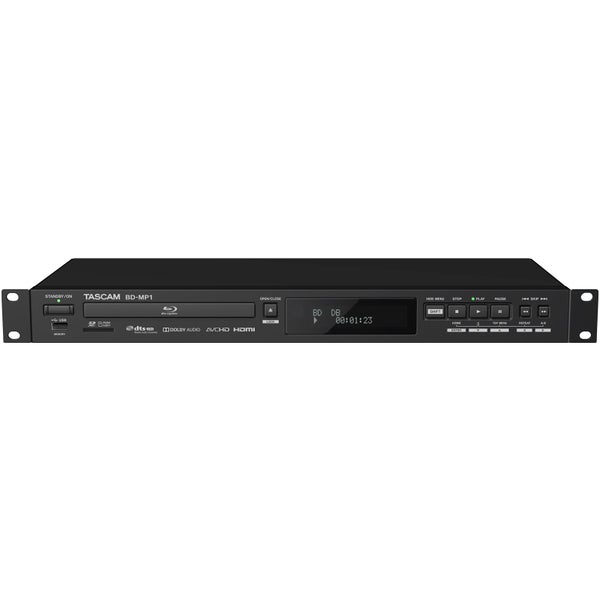

The Tascam BD-MP1 is a touring and installation media-player able to support an immense range of playback options: Blu-Ray, DVD, CD, SD, and USB. Complete with 7.1ch audio, this audiovisual giant provides pro-grade performance. A 19" rack mount comes included and the slim yet robust metal casing takes up 1U of space. Fitted with XLR outputs, unbalanced RCA outputs, an HDMI port, and a USB slot on both the front and back panels for diverse and dynamic media playback.

The Tascam BD-MP1: Pro Blu-Ray Player

Besides a solid housing bristling with inputs and outputs, the Tascam BD-MP1 comes with a few built-in features. Power-on-Play and Repeat modes have been included so that start times can be saved and triggered and clips can be set to start automatically looping until the device is switched off. If this media-player is part of a commercial installation, the control panel, IR signal and CD tray can all be locked to prevent anyone from messing with the controls. On the front, a clean set of Stop, Play, Pause, and Fast Forward functions are offered as well as navigation controls for the internal menu that can also be accessed and adjusted using the included remote control.

Compromiso de servicio

Garantía Bax Music El periodo de garantía de este producto es de 2 años.

El periodo de garantía de este producto es de 2 años.

Características

Características del producto

19 pulgadas: Sí
Formato rack 19: Sí, 1 U
Sistemas reproducción: USB, tarjeta SD , reproductor cd , DVD player, Blu-ray speler
Media player audio inputs: Not applicable
Media player audio outputs: Unbalanced RCA (2x mono), balanced XLR (2x mono)
Sustainable product: Not specified
DJ functionality: No

Peso y las dimensiones incluyen el paquete

Peso: 4,5 kg
Dimensiones: 54,0 x 41,5 x 13,5 cm

Características del producto

Tascam BD-MP1 Blu-Ray player
disc media:
- Blu-ray: BD25, BD50, BD-ROM, BD-R, BD-RE
- DVD: DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW
- CD: CD-DA, CD-R, CD-RW
disc type:
- Blu-ray: BDMV, BDAV, BD-Audio
- DVD: DVD-Video, DVD-VR, AVCHD, DVD-Audio
layout:
- video: ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, RMVB, TP, TS, MP4, WMV
- audio: WAV, MP3, WMA, AAC, FLAC, APE
- images: JPEG, GIF, PNG
audio ratings:
- BD/DVD/USB/SD:
  - sampling freq: 44.1k/48k/64k/88.2k/96k/176.4k/192k Hz
  - bit length: 16/24 bit
- CD:
  - sampling freq: 44.1k/48k Hz
  - bit length: 16/24bit
- MP3/WMA:
  - sampling freq: 32k/44.1k/48k Hz
  - bit length:
    - MP3: 112k - 320k bps
    - WMA: 48k - 192k bps
HDMI output:
- port: HDMI 19pin Type A
- resolution: 480i/576i, 480p/576p, 720p, 1080i, 1080p
- aspect ratio: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
- video layout: NTSC, PAL, Multi
- HDMI signal system: RGB PC level, RGB Video level, YCbCr (4:4:4), YCbCr (4:2:2)
digital audio outputs:
- balanced:
  - port: XLR-3-32(1 : (Stereo)
  - output impedance: 200Ω
  - nominal output level: +4dBu (1.23 Vrms)
  - max. output level: +20dBu (7.75Vrms)
- unbalanced:
  - port: RCA pin jack × 1 pair
  - output impedance: 200Ω
  - nominal output level: -10dBV (0.316 Vrms)
  - nominal output level: -6dBV (2.0 Vrms)
- 7.1ch audio outputs:
  - port: RCA pin jack × 8 (FL/FR/SL/SR/SBL/SBR/C/SW)
  - port colour:
    - FL, SL, SBL : white
    - FR, SR, SBR : red
    - C, SW : black
  - output impedance: 200Ω
  - nominal output level: -10dBV (0.316 Vrms)
  - max. output level: +6dBV (2.0Vrms)
RS-232C:
- connector: D-sub 9pin × 1
- layout: RS-232C compliant
Ethernet:
- connector: RJ-45
- protocol: 10BASE-T/100BASE-TX
USB:
- connector:
  - front panel: USB A-type × 1
  - rear: USB A-type × 1
- protocol: USB2.0 compliant
- nominal supply voltage: DC 5V, 1A
- mass storage class: 2TB (Max)
- file formats: FAT16/FAT32/NTFS
SD:
- media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 128GB)
- memory class: max. 128GB
- file formats: FAT16/FAT32/EX-FAT/NTFS
power supply: 100V - 240V, 50/60Hz
power consumption: 30W
operating temperature: -5 -35°C
dimensions: (L x D x H): 48.3 x 27.48 x 4.65 cm
weight: 3 kg
included:
- RC-BDMP1 remote control,
- AC power cable,
- 19-inch rack mount,
- user manual and warranty
