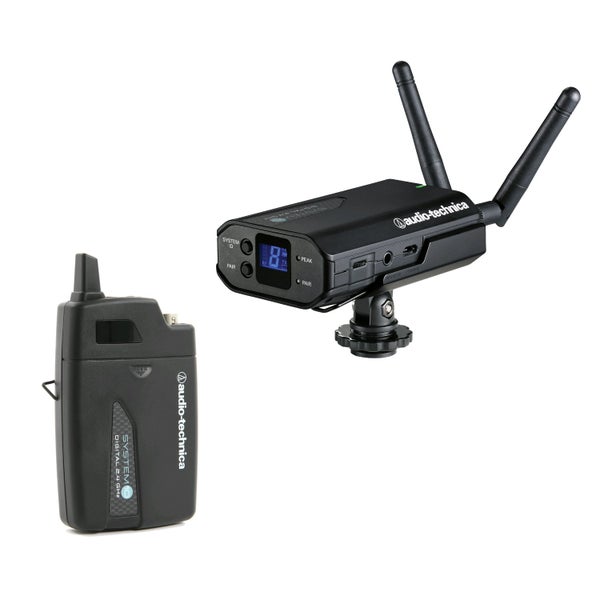

Audio Technica ATW-1701 System 10 (2.4 GHz) pinza para cámara

aún no hay comentarios

Audio Technica ATW-1701 System 10 (2.4 GHz) pinza para cámara

No disponible

Este producto ya no puede adquirirse

Características

Características del producto

Tipo batería: AA
Duración de las pilas/batería: 7 horas
Banda de frecuencia: 2.4 GHz
Canal: 2.4 GHz
Frecuencia máxima: 20 - 20.9 kHz
Frecuencia mínima: 20 - 21 Hz
Patrón de captura: No aplicable
Frecuencias conmutables: No
Type of camera microphone: Not applicable
Banda de frecuencia: 2.4 GHz
Coenctor de salida: Jack 3,5 mm
Potencia transmisión: 10 mW

Peso y las dimensiones incluyen el paquete

Peso: 400 gr
Dimensiones: 36,0 x 18,0 x 8,0 cm

Características del producto

compact wireless system for camera
consists of:

ATW-R1700 receiver
ATW-T1001 UniPak transmitter

frequency band: 2.4GHz ISM
dynamic range: >109 dB
range: 30m radius (60m diameter)
frequency response: 20 Hz - 20 kHz

ATW-R1700 receiver

output: 3.5mm mini jack balanced/unbalanced
Frequency Diversity, Space Diversity and Time Diversity
power supply: internal Li-ion battery
battery life: 12 hours
charging time: 4.5 hours
dimensions: 56 x 91.4 x 27.8 mm (2.20 x 3.60 x 1.09 inches)
weight: 105 g
including: 2 antennas, camera fastening (hot/cold shoe), adapter (USB), USB cable, 3.5mm stereo cable

ATW-T1001 UniPak transmitter

power supply: 2x AA battery (not included)
battery life: approx. 7 hours
switch for on/off and mute
level controls
pairing switch
screen for System ID
fit for lavalier microphone as well as guitar cable (if provided with UniPak connector)

No se han encontrado alternativas

Características

Características del producto

Tipo batería: AA
Duración de las pilas/batería: 7 horas
Banda de frecuencia: 2.4 GHz
Canal: 2.4 GHz
Frecuencia máxima: 20 - 20.9 kHz
Frecuencia mínima: 20 - 21 Hz
Patrón de captura: No aplicable
Frecuencias conmutables: No
Type of camera microphone: Not applicable
Banda de frecuencia: 2.4 GHz
Coenctor de salida: Jack 3,5 mm
Potencia transmisión: 10 mW

Peso y las dimensiones incluyen el paquete

Peso: 400 gr
Dimensiones: 36,0 x 18,0 x 8,0 cm

Características del producto

compact wireless system for camera
consists of:

ATW-R1700 receiver
ATW-T1001 UniPak transmitter

frequency band: 2.4GHz ISM
dynamic range: >109 dB
range: 30m radius (60m diameter)
frequency response: 20 Hz - 20 kHz

ATW-R1700 receiver

output: 3.5mm mini jack balanced/unbalanced
Frequency Diversity, Space Diversity and Time Diversity
power supply: internal Li-ion battery
battery life: 12 hours
charging time: 4.5 hours
dimensions: 56 x 91.4 x 27.8 mm (2.20 x 3.60 x 1.09 inches)
weight: 105 g
including: 2 antennas, camera fastening (hot/cold shoe), adapter (USB), USB cable, 3.5mm stereo cable

ATW-T1001 UniPak transmitter

power supply: 2x AA battery (not included)
battery life: approx. 7 hours
switch for on/off and mute
level controls
pairing switch
screen for System ID
fit for lavalier microphone as well as guitar cable (if provided with UniPak connector)

Información del producto

nº de producto: 9000-0012-8905

General

The Audio Technica ATW-1701 is used to ensures wireless sound recording when you are filming with a video camera. This set consists of a receiver and transmitter. You should can slide the receiver into the hot shoe of the camera and connect it to your camera via the accessory 3.5mm cable. The bodypack transmitter is clamped to your belt, for instance, and you can subsequently connect a separately available lavalier or other type of microphone with UniPak connector to the transmitter. When all of this is done, the system is ready for stable signal transfers from transmitter to camera.

ATW-1701: triple diversity and 2.4 GHz

The ATW-1701 is a part of the System 10 series. Each of the sets from this series operates within the 2.4GHz range, which can be used all over the world and isn't bothered by, for instance, TV signals. The right frequency is found in an instant by the ATW-1701 set. To ensure optimal signal transfers, three diversity types are used: the signal leaves the transmitter on two frequencies, two moments and towards two antennas. You can charge the battery of the receiver via the accessory power adapter and use two AA batteries for the power supply of the transmitter.
