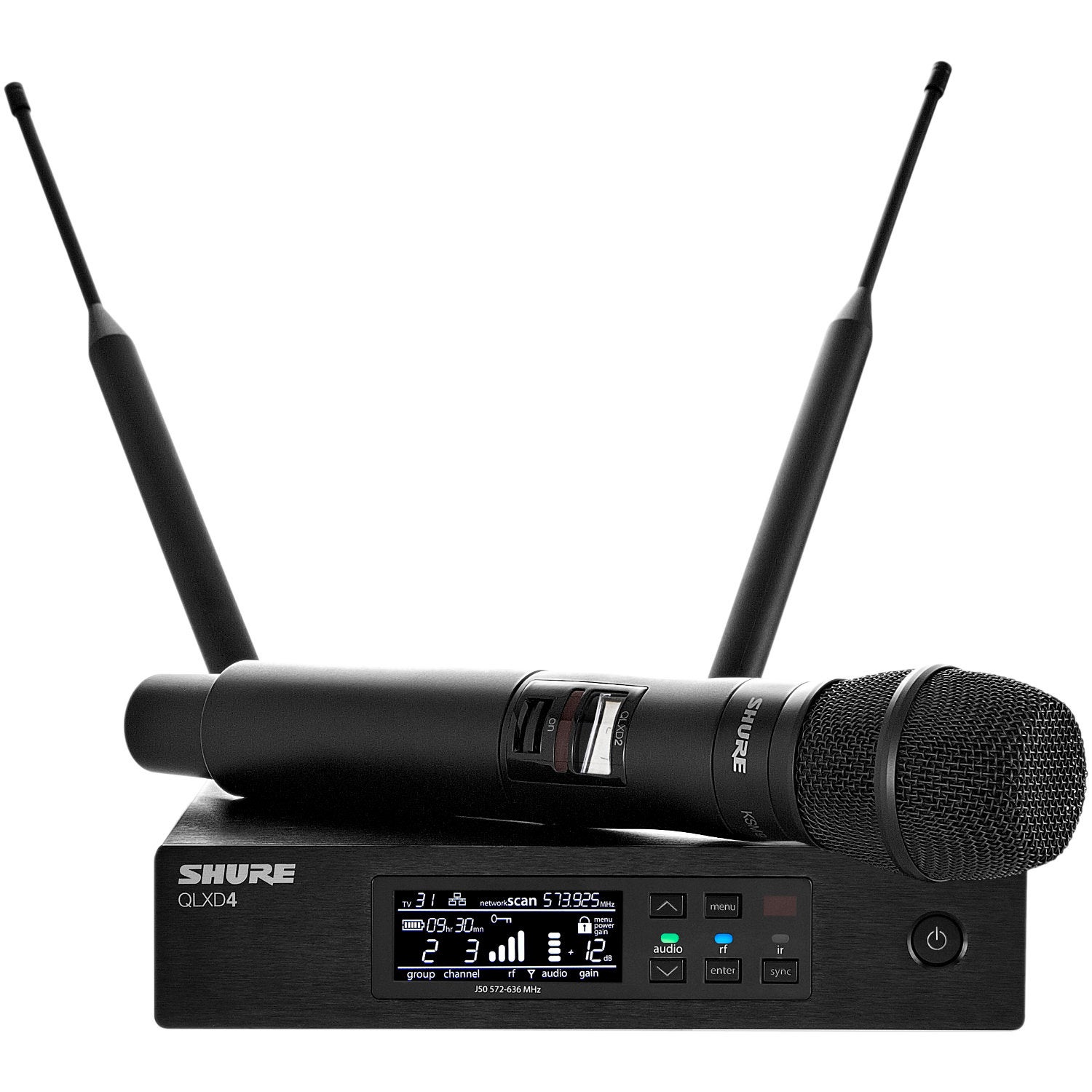

Shure QLXD24 - KSM 9 (G51, 470-534 MHz) micrófono de mano inalámbrico

Shure QLXD24 - KSM 9 (G51, 470-534 MHz) micrófono de mano inalámbrico
nº de producto: 9000-0014-2615 Garantía Bax Music: El periodo de garantía de este producto es de 2 años.

General

The Shure KSM9 is a special microphone that is equipped with a condenser capsule with a switchable pickup pattern, so that it can be attuned to its direct environment. Furthermore, the QLXD24/KSM9 set can be used wirelessly. As the QLX-D4 receiver transmits the signal digitally, the sound quality is excellent! Together with the KSM9 microphone, it forms a great-sounding duo that can last for up to 9 hours on one charge and has a range of 100 metres. Linking the microphone and receiver is very easy thanks to a smart infrared system.

Shure QLXD24/KSM9 G51: Wireless Studio Quality

Compared to analogue systems, this QLXD24/KSM9 G51 system allows for the simultaneous use of more microphones, thanks to the narrower bandwidth of the digital signal. This makes the set ideal for larger productions. The monitoring of the receiver can be done via your computer or iOS device via LAN. The set uses the frequencies 470 - 534 MHz. Moreover, this is a very complete set, so that you can get started right away!

Características

Características del producto

Número de micrófonos 1 micrófono
Tipo batería AA, SB900 lithium-ion
Duración de las pilas/batería 9 horas
Frequency suitable for Belgium yes, no licence required
Frequency suitable for Netherlands yes, no licence required
Frequency suitable for UK yes, with standard licence
Worldwide frequency use no
Banda de frecuencia Shure G51 (470 - 534 MHz)
Canal 21 (470 - 478 MHz), 22 (478 - 486 MHz), 23 (486 - 494 MHz), 24 (494 - 502 MHz), 25 (502 - 510 MHz), 26 (510 - 518 MHz), 27 (518 - 526 MHz), 28 (526 - 534 MHz)
Frecuencia máxima 20 - 20.9 kHz
Frecuencia mínima 50 - 59 Hz
Patrón de captura cardioide, supercardioide
Frecuencias conmutables
Analogue audio output type unbalanced line out (TS jack), balanced line out (XLR), balanced microphone out (XLR)
Banda de frecuencia 470 - 499 MHz, 500 - 599 MHz
Potencia transmisión 10 mW

Peso y las dimensiones incluyen el paquete

Peso (incluyendo el paquete) 3,0 kg
Dimensiones (incluyendo el paquete) 50,0 x 44,0 x 11,0 cm

Características del producto

  • wireless handheld system
  • frequency band: G51 (470 - 534 MHz)
  • consists of:
    • handheld (KSM9)
    • receiver (QLXD4)
  • digital system
  • ideal for medium-sized applications
  • easy installation and controls
  • 22 systems per 8MHz channel
  • selectable frequencies: up to 2,880
  • easy synchronisation of transmitter and receiver
  • over 60 preset channels per frequency band (region-dependent)
  • Automatic Channel Scan, Network Scan and infrared synchronisation
  • AES-256 encryption
  • tuning bandwidth: 64 MHz
  • predictive digital diversity switch
  • frequency range: 20 Hz - 20 kHz (microphone dependent)
  • Ethernet communication for multiple receivers
  • compatible with Shure Wireless Workbench 6 software (PC/Mac)
  • monitoring and controls with mobile iOS devices via ShurePlus Channels app
  • including:
  • power adapter
  • manual
  • rackmount kit
  • 2x BNC bulkhead adapter
  • 2x BNC cable
  • 2x AA battery

QLXD4 receiver

  • backlit LCD display
  • LED meters for audio and RF signals with peak indication
  • detachable antenna
  • outputs: XLR and 6.3mm jack
  • robust housing, brushed aluminium
  • 19-inch rack-mountable (half-rack size)
  • 2 antenna connectors (antennas included)
  • Ethernet connector
  • power supply: PS23E (included)

KSM 9

  • pickup pattern: cardioid & super-cardioid
  • capsule: condenser
  • 24-bit audio quality
  • frequency range: 50 Hz - 20 kHz
  • easy to link via infrared
  • rugged metal housing
  • illuminated LCD display for easy navigation
