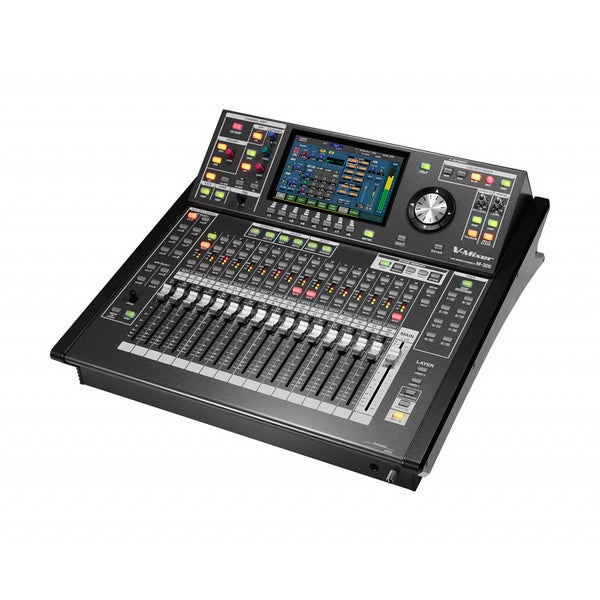

Roland M-300 M-300 V-Mixer

• PA and studio mixer
• 32 mixing channels, L/C/R outputs, 8 aux buses, 4 matrix buses
• 4-band PEQ and dynamics on all channels
• 11 different, built-in multi effects/PEQ and delay on all outputs
• 24-bit AD/DA for a high-grade sound
• remote-controllable via a PC
• recording/playback via USB flash memory
• perfect integration with RSS digital snakes for simple and high-grade audio transmission
• create a flexible and powerful system with other REAC components
• number of channels: 32 mixing channels/11 buses/4 matrix buses
• up to 92 inputs and 90 outputs when using REAC equipment
• AD/DA conversion: 24-bit/48kHz or 44.1kHz
• console input jacks (1 to 4): XLR-3-31 type (balanced, phantom power)
• console input jacks (5 to 8): 6.35mm phone type (balanced)
• console input jacks (9 to 12): RCA pin type
• console output jacks (1 to 4) XLR-3-32 type (balanced)
• console output jacks (5 to 8): 6.35mm phone type (balanced)
• phones jack: stereo 6.35mm phone type
• digital out jack: optical type
• REAC port: RJ-45 EtherCon type x 2
• USB port: type A x 1, type B x 1
• remote connector 1: RS-232C connector (9-pin D-sub type)
• remote connector 2: MIDI connector (OUT/THRU, IN, 5-pin DIN type)
• other connectors: grounding terminal, AC input connector
• frequency response console output jacks (1 to 8): -2 dB/+0 dB (20 kOhm load, +4 dBu)
• frequency response phones jack: -3 dB/+0 dB (40 ohm load, 150 mW)
• THD+N console output jacks (1 to 8): 0.05% (typ., +4 dBu)
• THD+N phones jack: 0.05% (typ., 40 ohm load, 150 mw)
• dynamic range console output jacks (1 to 8): 105 dB (typ.)
• crosstalk @ 1 kHz console input jacks (1 to 4) -80 dB (pad on, +4 dBu, typ.)
• crosstalk @ 1 kHz console input jacks (5 to 12) -80 dB (+ 4 dBu, typ.)
• crosstalk @ 1 kHz console output jacks (1 to 8): -100 dB (typ.)
• nominal input level (variable) console input jacks (1 to 4) with pad off: -65 to -10 dBu
• nominal input level (variable) console input jacks (1 to 4) with pad on: -45 to +10 dBu
• nominal input level (variable) console input jacks (5 to 12): -28 to +4 dBu
• input impedance console input jacks (1 to 4): 14 kOhm
• input impedance console input jacks (5 to 12) 10 kOhm
• non clip maximum input level console input jacks (1 to 4) with pad off: +8 dBu
• non clip maximum input level console input jacks (1 to 4) with pad on: +28 dBu
• non clip maximum input level console input jacks (5 to 12): +22 dBu
• nominal output level console output jacks (1 to 8): +4 dBu (load impedance 10 kOhm)
• output impedance console output jacks (1 to 8): 600 ohm
• output impedance phones jack: 100 ohm
• recommended load impedance console output jacks (1 to 8): 10 kOhm or more
• recommended load impedance phones jack: 8 ohm or more
• non clip maximum output level console output jacks (1 to 8): +22 dBu (1 kHz, 10 kOhm load)
• non clip maximum output level phones jack: 150 mW + 150 mW (typ., 1 kHz, 40 ohm load)
• residual noise level (IHF-A, typ.): -88 dBu (all faders: Min)
• equivalent input noise level (E.I.N): -126 dBu
• E.I.N. measured with main fader at unity, channel faders at unity and only one channel
• E.I.N. measured at maximum preamp gain
• display: 800 x 480 characters, wide VGA TFT colour screen, backlit
• power consumption: 50 watt
• power supply: AC 115 V, 117 V, 220 V, 230 V, 240 V (50/60 Hz)
• dimensions: 470 x 195 x 483 mm
• weight: 9.8 kg

Network latency

• 2.8 mS (typ.) * 1
• total system latency from audio signal to S-1608 inputs and outputs
• via M-300 REAC ports (A or B)
• sample rate: 48 kHz
• no insert effects
