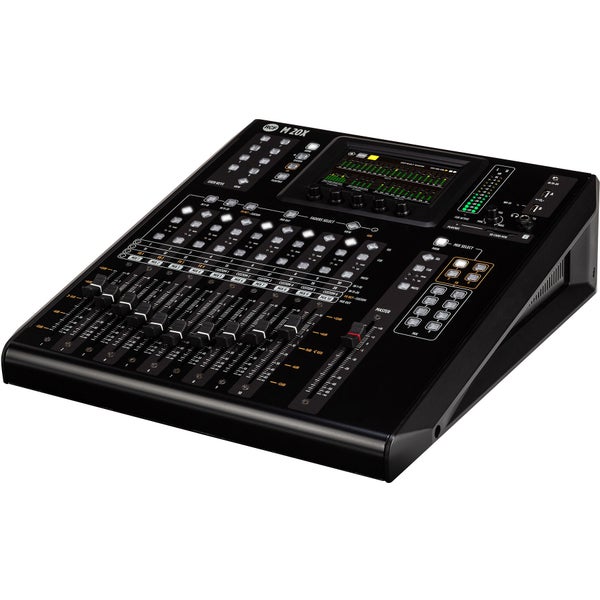

RCF M 20X digitale mixer

General

A space-saving, state-of-the-art digital mixer, the RCF M 20X doesn't only come teeming with options but supports iOS and Android devices via a special WiFi control platform. This compact 20-channel console features ten motorised faders that can be switched as well as used for FX return, plus no less than sixteen 'remote control' microphone preamps - eight of which come with XLR ports while the other eight come with jack/XLR combo ports. In addition to ten fully routable outputs, the M 20X has also been loaded with two stereo jack inputs, an RCA input and even a mini-jack input, and you'll find an AES-EBU output, a LAN port and a USB port for the 24x24 audio interface around the back of the unit.

The RCF M 20X: And There's More...

In addition to a small army of channels, inputs and outputs, RCF have loaded the M 20X with the Z.Core FX engine and an advanced DSP, equipping every channel with a hi-pass filter, a 4-band parametric EQ and a gate. Channels 1 to 16 also come with a built-in compressor, while the main FX engine serves up two types of reverb, delay and modulation effects. Last but not least, this top-tier tabletop digital mixing console features RTA (real time analyser) technology that allows you to check the audio spectrum of each individual channel, as well as a 24x24 USB audio interface that supports multi-track recording to SD cards in real-time. Meanwhile, the other USB port can be used to connect a MIDI controller or even a 5V USB device.

• Please note: The specifications may be subject to change.
