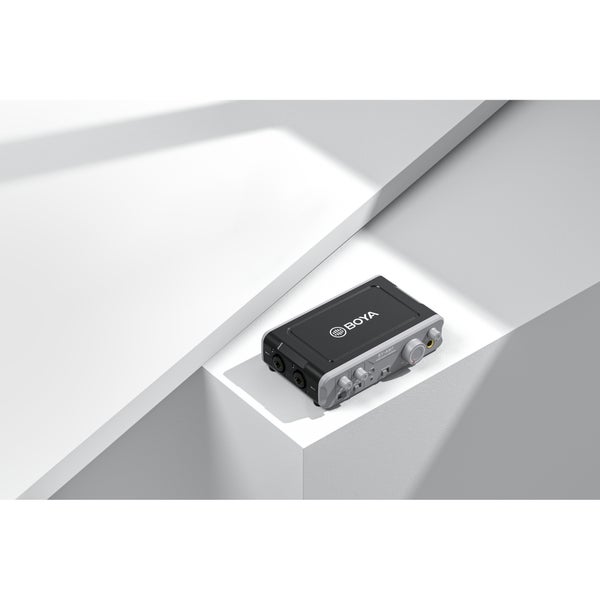

Boya BY-AM1 USB Audio Mixer/Interface

No disponible, este producto ya no puede adquirirse.

No se han encontrado alternativas
Boya BY-AM1 USB Audio Mixer/Interface
nº de producto: 9000-0077-4425 Garantía Bax Music: El periodo de garantía de este producto es de 2 años.

General

A smooth and simple two-channel USB mixer and audio interface in one, the Boya BY-AM1 can be used to record and mix audio captured by a connected dynamic or condenser microphone or even an electric or electro-acoustic guitar. Connect it up to your laptop or desktop computer via USB, plug in set of headphones for latency-free monitoring as you record, and plug in a standard XLR microphone cable or 6.3mm jack cable into one of the two side-fitted combo inputs. Since the BY-AM1 comes with built-in phantom power, the interface is fully compatible with active studio condenser microphones as well as passive dynamic microphones, and the housing has also been fitted with a mounting point so it can be secured to a stand for comfortable vocal recording sessions. To complete the pack, Boya has included a USB-A to USB-B cable and a 6.35mm to 3.5mm TRRS jack adapter.

Características

Características del producto

19 pulgadas no
Number of analogue Inputs 2
Number of analogue outputs 2
Number of headphone outputs 1
Conexión USB
Digital audio inputs none
Digital audio outputs none
Sustainable product not specified
Alimentación phantom
Sistema operativo Apple OS X, Microsoft Windows
Interface for compact all-round, guitarists, vocals + guitar
Total guitar/bass inputs 1
Entrada para micro sí, 2
Low latency monitoring yes, direct monitoring
Sample rate máximo 192 kHz
Included data cable USB cable
Software incluido none
MIDI y CV/gate ninguno
Entrada ninguna
Software incluido no
Analogue audio input type balanced line in (TRS jack), microphone input (XLR), Hi-Z instrument input (TS jack)
Analogue audio output type balanced line out (TRS jack), headphone output (jack or mini-jack)

Peso y las dimensiones incluyen el paquete

Peso (incluyendo el paquete) 600 gr
Dimensiones (incluyendo el paquete) 22,5 x 18,5 x 6,0 cm

Características del producto

  • audio mixer/interface
  • frequency response: 20Hz – 20kHz
  • gain range: 50dB (line-input)
  • sample rates: 44.1, 48, 88.2, 96, 176.4, 192kHz
  • USB port: USB
  • bus powered
  • phantom power: +48V
  • dimensions: 160 x 105 x 41.5mm
  • weight: 408.5g
  • included:
    • USB cable
    • 6.35mm to 3.5mm TRRS jack plug adapter
    • user manual
Ya no se puede escribir una opinión sobre este artículo

Reseñas de otros países

Traducir todos los comentarios al español

Boya BY-AM1 USB Audio Mixer/Interface

Escribió lo siguiente sobre Boya BY-AM1 USB Audio Mixer/Interface
Jarenlang liep ik te klungelen met stekkertjes omzetten van hoofdtelefoon naar speakers. Nu ik de mixer in gebruik heb genomen, hoef ik die handelingen niet meer te doen. Dat is echt handig. De mixer werkt zo uit de doos. Even aansluiten op de usb-poort van de computer en hij doet het. Tenminste bij Windows 11. Hij stoort niet en werkt ook prima samen met mijn KRK's.
Boya BY-AM1 USB Audio Mixer/Interface

Escribió lo siguiente sobre Boya BY-AM1 USB Audio Mixer/Interface
Neat little budget interface with good features. Separate output volume controls for speakers and headphones. Very useful for monitoring of edits. Only used 1 mic input so far - good gain control. Needed to download driver, but easily installed and works well with older versions of windows and DAW. Very good for discounted price.
