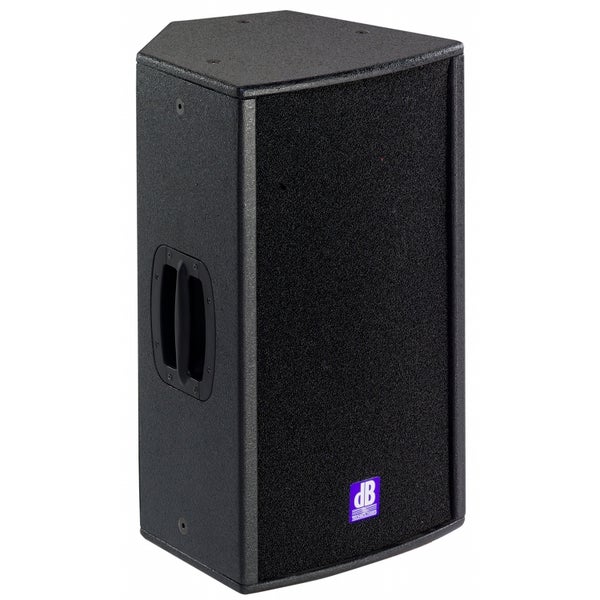

DB Technologies Arena 12 altavoz pasivo

No disponible, este producto ya no puede adquirirse.

No se han encontrado alternativas
DB Technologies Arena 12 altavoz pasivo
nº de producto: DB-ARENA12 Garantía Bax Music: El periodo de garantía de este producto es de 2 años.

General

The Arena 12 is a two-way passive speaker with an 12-inch woofer, that features a 2-inch voice coil for the low frequencies and a 1-inch tweeter with PTC driver protection for the high frequencies. The speaker can take up to 300 watts RMS, and produces a maximum sound pressure of 127 dB (SPL). The Arena 12 is delivered with a protective cover.



Additionally, the Arena 12 features M10 mounting points with screw threads for mounting a speaker cabinet with, for example, eyebolts on chains, or ropes.



For the high tones, the Arena 12 has a rotatable high-frequency horn for constant dispersion. Through the rotating of the horn, this directivity can be adjusted, regardless of whether the speaker is set up vertically or horizontally.



Thanks to the multifunctional housing, this speaker can also be used as a floor monitor, satellite speaker in combination with subwoofers, or as a full-range system on speaker stands.

Características

Características del producto

Diámetro del woofer 12 pulgadas
Diámetro tweeter 1 pulgadas
Sensibilidad sin especificar
Peso del altavoz 18 kg
Instalació altavoz/ 100 V no
SPL máxima 120 dB - 129 dB
Frecuencia máxima 19 - 19.9 kHz
Frecuencia mínima 80 - 99 Hz
Impedancia nominal 8 Ohm
Pico de consumo en W 750 - 999 W
RMS 350 - 499 W
Set no

Peso y las dimensiones incluyen el paquete

Peso (incluyendo el paquete) 27,0 kg
Dimensiones (incluyendo el paquete) 73,0 x 50,0 x 48,0 cm

Características del producto

  • two-way passive speaker
  • nominal power of 400W
  • peak power of 800W
  • impedance of 8 ohm
  • frequency response of 80 to 19,000 Hz at approximately 0 dB
  • maximum sound pressure level of 127 dB (SPL)
  • 1-inch HF compression-driven tweeter with 1.4-inch voice coil
  • PTC driver protection
  • dispersion: 90 x 70 degrees
  • rotatable CD horn
  • passive crossover frequency: 2,000 Hz
  • curve MF-HF 18 dB / octave
  • 12 inch LF woofer with 2-inch voice coil
  • 1x lockable speaker connector for signal input (Pin 1 +=+; Pin 1 -=-)
  • 1x lockable speaker connector for signal output (Pin 1 +=+; Pin 1 -=-)
  • black, multifunctional multiplex birch housing with textured acrylic lacquer
  • 1 hand grip per side
  • suited for 36mm speaker stands
  • 45-degree angle placement for use as a monitor, for example
  • metal front grille with acoustic foam on front size
  • 12x M10 connection points
  • dimensions: 379 x 631 x 378 mm (W x H x D)
  • weight: 17.8 kg
